2TR-FE Performance Thread

Discussion in '4 Cylinder' started by BassAckwards, Oct 30, 2019.

  1. Oct 30, 2019 at 10:31 AM
    #1
    BassAckwards

    BassAckwards [OP] Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    24,976
    Gender:
    Male
    First Name:
    Robert
    Well i looked around a little bit, but i didnt see anything that consolidated all the performance upgrades/mods for the 2TR in one place.

    Intakes:
    - aFe Magnum Force 51-11382 (discontinued)
    - aFe Stage 2 Si dry
    - aFe Stage 3 Si oiled
    - Volant oiled
    - K&N 63-9026
    - K&N 77-9026
    - HPS
    - Airaid MXP dry
    - Airaid MXP oiled
    - Airaid MCAD
    - Injen
    - HPS w/ stock airbox
    - Volant w/ Ram scoop oiled

    Intake manifolds/spacers:
    - Tooter Intake manifold spacer
    - Performance intake manifold for 2TR
    - 3rz S/C intake manifold adapter

    Drop-in air filters:
    - aFe drop in dry filter
    - aFe drop in oiled filter
    - K&N drop in oiled filter

    Headers:
    - header stud set
    - LCE equal length
    CARB compliant header:
    - Doug Thorley Tri-Y

    Catback exhausts:
    - aFe mach force for 05-12
    - aFe mach force for 13-15
    - Magnaflow 15240 for 13-15
    - LCE pro flow
    - Gibson- reg cab 2nd gen only
    - Magnaflow 19275 for 16+
    - aFe Rock basher for 16+

    Performance midpipes:
    - URD power pipe 2nd gen
    - URD power pipe 3rd gen
    - URD o2 simulator
    - aFe direct fit catalytic converters

    SAIS Bypass Kit for 05+ 2.7L
    - Hewitt tech (install PDF below)

    Larger injectors/fueling:
    - FiveOMotorsports 315cc, 380cc, 450cc
    - FiveOMotorsports 450cc, 550cc, 650cc
    - Injector dynamics 1050x
    - Performance fuel rail for 2TR

    Forced induction:
    - URD S/C 2nd gen
    - URD S/C 3rd gen
    - Turbo manifold & downpipe
    - Turbo manifold only

    Internals:
    - LCE Pro Dual Valve springs & retainers (0-20lbs boost)
    - LCE Pro HD Valve springs & retainers (20+lbs boost)
    - LCE Pro Valve train kit (0-20lbs boost)
    - LCE Pro HD Valve train kit (20+lbs boost)
    - LCE pro chromoly connecting rods
    - ARP head studs
    - ARP main studs
    - Arias pistons
    - LCE Pro Piston Set (forged)
    - Pauter connecting rods
    - LCE Pro chromoly cross beam connecting rods (made by Pauter)
    - Engine rebuild kit
    - +1mm Intake valves
    - +1mm Exhaust valves
    - Viton valve seals

    Spark plugs:
    2nd gen 2005-2015:
    Stock heat range:

    - Denso 3421/SK20HR11
    - NGK 4904
    One step colder:
    -
    Denso 5345 IKH22
    - NGK 2309
    Two steps colder: (used w/ the URD SC)
    - Denso 5346 IKH24
    - NGK 4901

    3rd gens 2016+:
    Stock heat range:
    - Denso 3509 FK20HRA-8/Toyota 90919-01287
    Two steps colder: (used w/ the URD SC)
    - Denso 5346 IKH24

    Ignition Coils:
    Stock replacement:
    - Denso 6731308
    Aftermarket replacement:
    - RIPP performance

    Tuning:
    - OVTune - 3rd gen thread
    - MAPECU3 w/ URD type F jumper harness
    - URD MAF calibrator (for open loop only)
    - AEM F/IC-6
    - Haltech w/ Boomslang Adapter harness

    Cooling:
    - CSF radiator
    - aFe radiator
    - Flexalite e-fan
    - 170* Thermostat Duralast 4107 (made by Motorad)
    - 170* Thermostat Motorad
    - 155* Thermostat Mishimoto
    - HPS silicone hoses
    - Billet water pump block-off plate

    Oil filters:
    - Toyota 90915-YZZD1 (stock capacity)
    - Toyota 90915-YZZD3 (roughly 1/8qt increased capacity- stock filter on v6 trucks)
    - Wix 51516XP (roughly 1/3qt increased capacity)
    - LCE Billet Oil Cap

    Transmission upgrades:
    - Transgo shift kit for A340E/A340F
    - Transgo reprogramming kit A340E/A340F
    - IPT Valve Body Upgrade Service A340E/A340F
    - IPT Upgraded Performance Rebuild Kit
    - IPT high stall torque converter upgrade service
    - IPT Upgraded Performance A340E/A340F
    - URD short throw shifter
    - Hurst core short throw shifter (R155/05-15 2wd 5lug/PreRunner 5 speed)
    - Hurst core short throw shifter (R155F/05-15 4wd 5 speed)
    - Hurst core short throw shifter (R156F/2016+ 4wd 5 speed)
    - LCE lightweight steel flywheel (19lbs)
    - LCE heavy steel flywheel (30lbs)
    - LCE clutch kits
    - SPEC clutch kits
    - Southbend clutch kits
    - Clutchmasters clutch kits
    - Centerforce clutch kits
    - Competition clutch kits
    - replacement flywheel bolts
    - R154 billet shift fork swap into R155

    Drive belts:
    - Stock length w/o Air Conditioning: Gates K070735 Info
    - Stock length w/ Air Conditioning: Gates K070901 Info

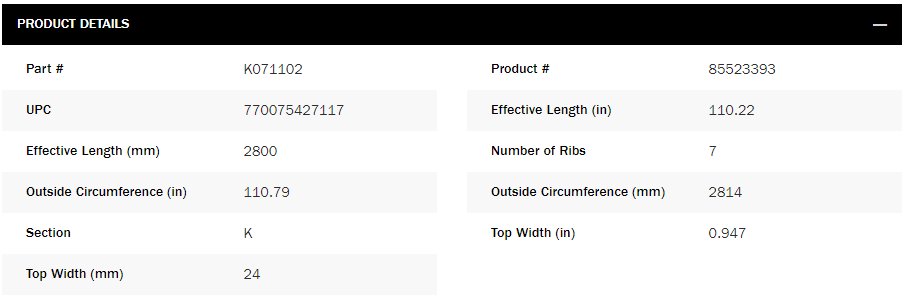

    - URD 2TR-FE Supercharger belt (special order @ O'Reilly Auto Parts): Gates K071102 (15/16" x 110.75" OC & 24mm x 2814mm OC)
    Gates k071102.jpg

    Useful Links:
    - FSMs
    - 2TR-FE engine bay guide
    - Spark plug change 2TR-FE
    - MAF sensor and TB cleaning
    - R155 5-speed info
    - A340 4-speed info
    - MAPECU3 thread
    - 2TR dyno thread
    - Water bypass pipe no. 1
    - Grimm Jeeper gear ratio calculator
    - URD S/C MAPECU3 Tune- See ZIP file below - Per Gadget @URD, the same tune is used for stage 1 & 2
    - MAPECU3 troubleshooting

    2TR info:
    Compression ratios
    - 9.6:1 (2005-2015)
    - 10.2:1 (2016+)
    Injector flow rate
    - 2nd gen 284-344cc

    Part numbers:
    - 2TR-FE Engine Air Filter 17801-YZZ04
    - Exhaust manifold/header gasket 17173-75040
    - Upper radiator hose 16571-0C120
    - Lower radiator hose 16572-0C110
    - 180*F thermostat 90916-03093
    - Water pump 16100-79445-83
    - Valve cover gasket 11213-75041
    - Spark plug seal gasket 11214-75012
    - PCV Valve 12204-0C010
    - Metal coolant bypass pipe 16268-75112
    - Water inlet housing gasket (thermostat gasket) 16325-76010
    - Thermostat housing gasket 16325-75011
    - R155/R155F Koyo TOB 31230-35071
    - Pilot bearing OEM 90363-12020
    - R155 Transmission mount 12371-0C140
    - R155 Bellhousing Dust Seal/Cover 11354-75030
    - 2.7L Intake stock intake box S-Hose 17881-0C081
    - 5spd SR5 leather shift knob 33504-22140-C0
    - Front main seal 90311-48031
    - Rear main seal 90311-88006
    - Front AFR sensor Denso 89467-04010
    - Mass air flow sensor 22204-0F030
    - Intake manifold gasket 17177-75040

    - Exhaust manifold/header gasket 17173-75040
    - belt tensioner pulley w/ bearing 16603-75010
    - Idler Part Numbers/Specs
    - Intake manifold ventilation hose 12263-75070

    Timing Cover O-rings & FIPG:

    - Lower oil o-ring 96723-35028
    Two o-rings in the middle of the timing cover on each side
    - 90301-25014
    - 90301-25020
    - Lower pass side of timing cover o-ring 90301-19021
    - Camshaft oil delivery pipe o-ring 96723-19011
    - Seal packing/FIPG for timing cover/oil pan/valve cover 00295-00103

    Head gasket replacement parts/info:
    - Toyota Coolant Compatible Seal Packing 08826-00100 - Where this is used
    - Mahle .030" MLS gasket - (my stock gasket was .020" thick and I had the machine shop remove .010" so I could use this .030" gasket. Your replacement head gasket should account/add back for the material removed when having your cylinder head resurfaced)
    - Useful links/threads:

    ARP head stud install tips/info: (LCE's instructions attached below)
    - First-time torque value is 80 ft/lbs
    - After torqued down once/heat cycled, if removed and reinstalled, 75 ft/lbs should be used
    - ARP M11x1.25 thread cleaning chaser

    If anyone has more info or notices something I've missed, post up and i will try to update this thread.

    There are files attached below. Be aware that the 05-06 FSM ECU Pinout may differ in 2013+ year model trucks. Also, the MAPECU3 wiring diagrams for the URD SC are specific to 05-12 and 13-15 year models. No AFR adjust module is required on 13-15 trucks. A big thanks to @Hayrider for the 13-15 wiring info and confirming no AFR module is required on the later 2nd gens w/ the URD S/C.

    Cheers,
    Robert


    Attached Files:

    Last edited: Apr 30, 2021
  2. Oct 30, 2019 at 11:40 AM
    #2
    BassAckwards

    BassAckwards [OP] Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    24,976
    Gender:
    Male
    First Name:
    Robert
    My 2.7L setup started out as:
    - aFe magnum force hot air intake
    - LCE header
    - 4.88 gears
    - stock catback exhaust

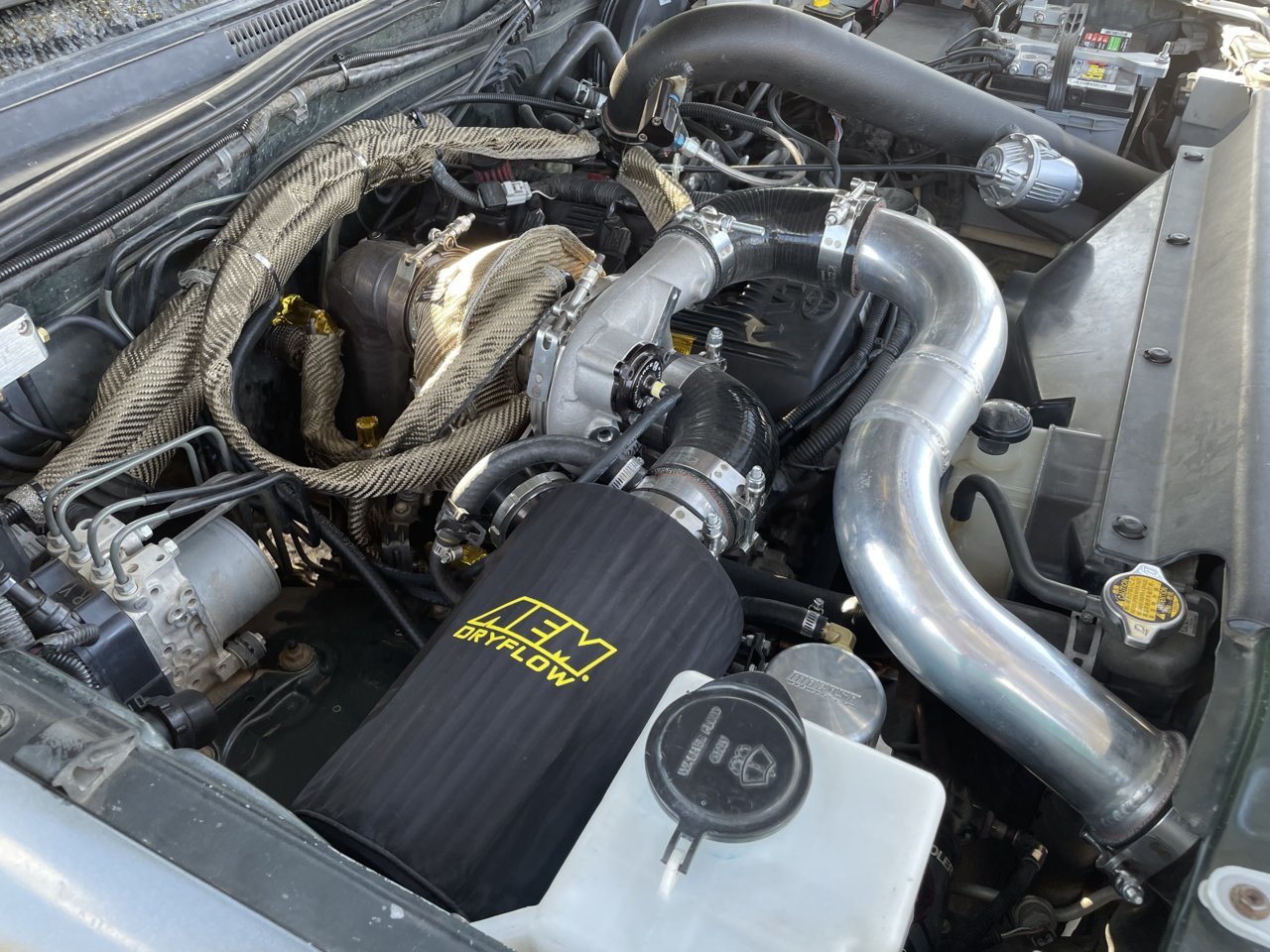

    [​IMG]

    Now I'm running:
    - Stage 2 URD S/C
    - Denso IKH24 spark plugs
    - MAPECU3 w/ URD type F jumper harness
    - 5th injector
    - LCE equal length header
    - URD power pipe
    - 5.29 gears w/ Detroit TrueTrac

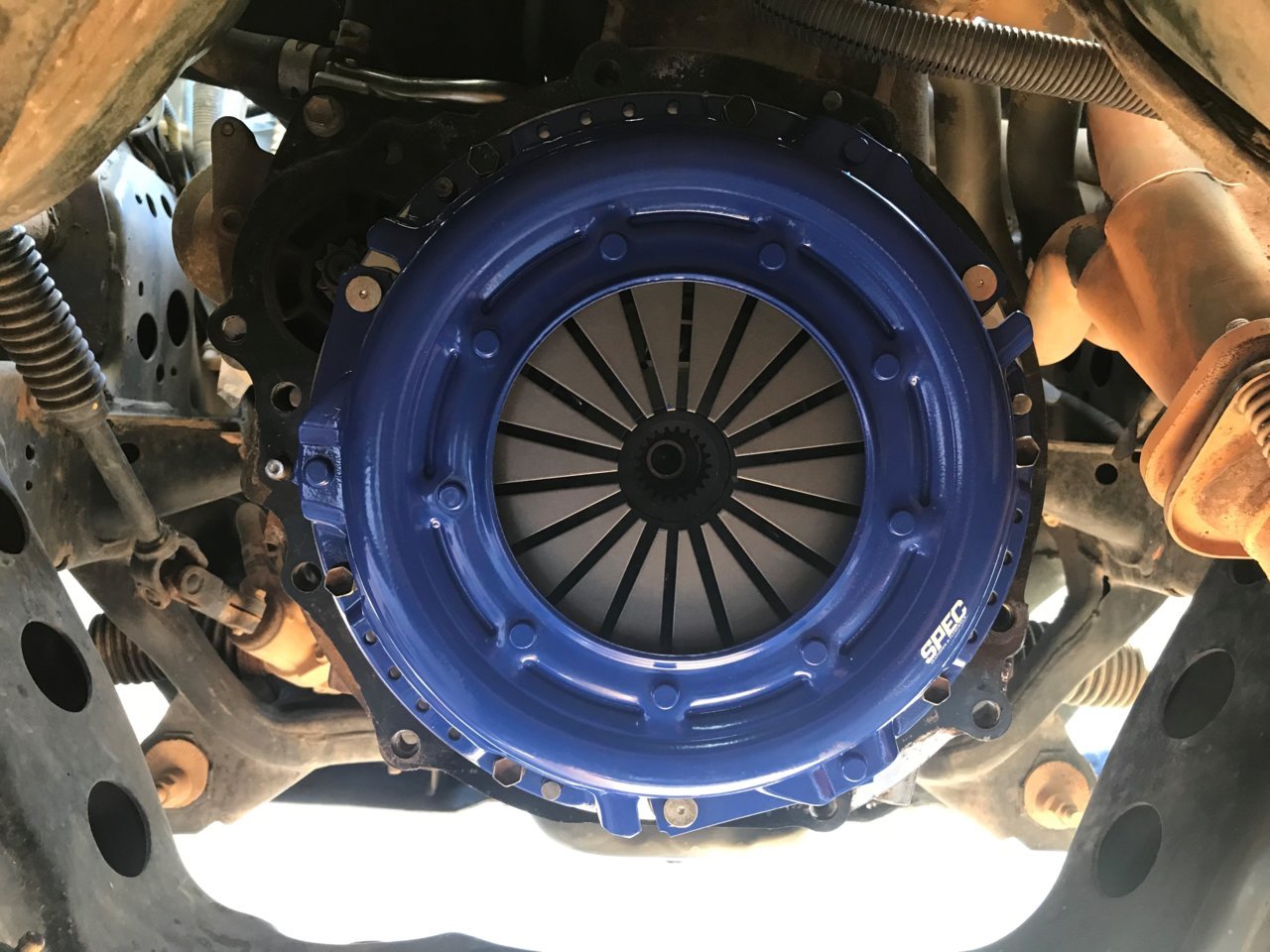

    - SPEC stage 2+ clutch

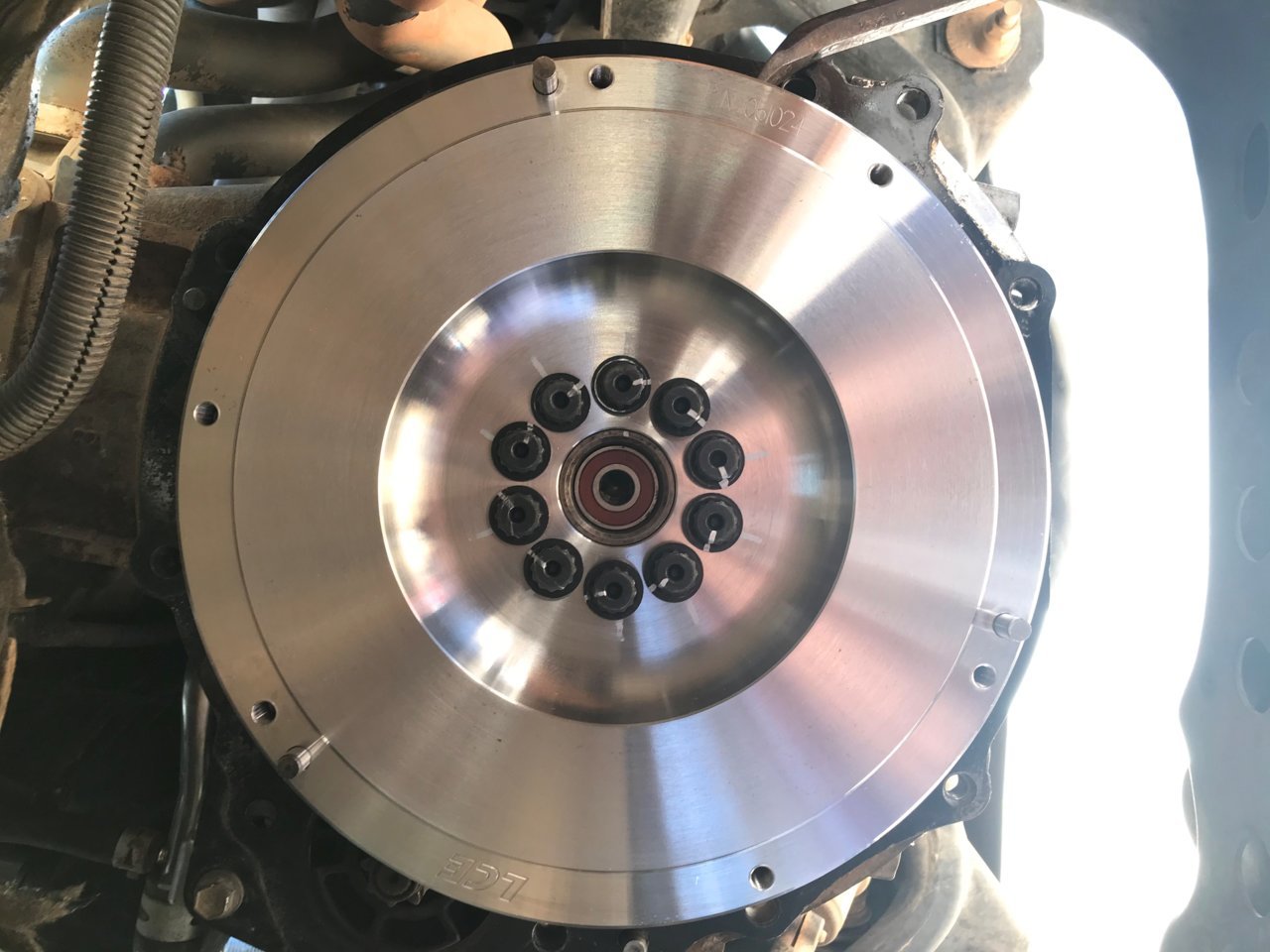

    - LCE lightweight steel flywheel
    - AEM 340LPH fuel pump w/ stock FPR boost referenced
    - Mildly ported throttle body
    - Stock catback exhaust
    - 295/70/17s

    Last edited: Jan 22, 2021
    Kuntrykid, 3pooches, H860 and 8 others like this.
  3. Oct 31, 2019 at 3:43 PM
    #3
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    21,859
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Dude. Nice compilation.

  4. Nov 1, 2019 at 4:54 AM
    #4
    Jowett

    Jowett Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    936
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    Valve train parts from various other Toyota/Lexus roller cam engines should be applicable to the 2TR. Valves come in stainless and titanium, right from Toyota, and they are a bargain. Some later engines have moved to beehive valve springs with their smaller lighter retainers. GSE engines have additional oil jets drilled in the roller rocker bodies to supply extra lube to the rollers and cam lobes.

  5. Nov 2, 2019 at 10:49 AM
    #5
    teamtempo

    teamtempo Well-Known Member

    Joined:
    Jun 10, 2019
    Member:
    #295925
    Messages:
    82
    Gender:
    Male
    First Name:
    Sal
    San Diego
    This is very useful. Thanks for posting.

    PintSize and BassAckwards [OP] like this.
  6. Nov 5, 2019 at 4:42 PM
    #6
    BassAckwards

    BassAckwards [OP] Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    24,976
    Gender:
    Male
    First Name:
    Robert
    Last edited: Dec 30, 2019
  7. Nov 19, 2019 at 7:02 PM
    #7
    PintSize

    PintSize Crossthreaded & torqued down

    Joined:
    Jun 16, 2016
    Member:
    #189793
    Messages:
    2,497
    Gender:
    Male
    Texas
    Vehicle:
    2011 2.7L 5 spd RC 4x4

    Excellent compilation of info here!

    BassAckwards [OP] likes this.
  8. Nov 20, 2019 at 9:10 PM
    #8
    snarfydelfuego

    snarfydelfuego Member

    Joined:
    Sep 29, 2019
    Member:
    #306581
    Messages:
    9
    Gender:
    Male
    First Name:
    Chris
    Sacramento, CA
    Vehicle:
    07 PreRunner AC 5M 2.7L
    Softopper; sleeping platform; bed liner bumper/grill/flares
    Bravo for this

    whatstcp and BassAckwards [OP] like this.
  9. Nov 20, 2019 at 9:18 PM
    #9
    whatstcp

    whatstcp currently drunk so don't listen to me

    Joined:
    Aug 3, 2018
    Member:
    #261584
    Messages:
    9,291
    Gender:
    Male
    First Name:
    Ed
    Fontana, CA
    Vehicle:
    2006 Tacoma Regular Cab 2.7l 4x4
    King + Archive Relocation Wheeler's bumps +hydros
    Wouldn't hurt to sticky this in the 4 cylinder section, Lord knows I'll need the part numbers sooner or later

    tcBob and BassAckwards [OP] like this.
  10. Nov 20, 2019 at 9:19 PM
    #10
    MY50cal

    MY50cal ---- Tread Lightly ---- Leave No Trace

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    3,986
    Gender:
    Male
    First Name:
    Mojo
    Chester County, PA
    Vehicle:
    09 PM RC / 05 SWB AC (RIP)
    Yep.
    My man, nice work!

    :burnrubber:

    BassAckwards [OP] likes this.
  11. Nov 20, 2019 at 9:21 PM
    #11
    T4RFTMFW

    T4RFTMFW Well-Known Member

    Joined:
    Jul 23, 2014
    Member:
    #134525
    Messages:
    69,578
    @tcBob

  12. Nov 21, 2019 at 1:47 PM
    #12
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,121
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    You know I'm in

  13. Nov 24, 2019 at 11:00 AM
    #13
    JL8Jeff

    JL8Jeff Well-Known Member

    Joined:
    Feb 6, 2018
    Member:
    #243662
    Messages:
    902
    First Name:
    Jeff
    Ewing, NJ
    Vehicle:
    2013 Tacoma reg cab
    OME 885/nitros, SPC UCA, 305/65/17, AAL
    I keep wondering if there is any way to put a Procharger in place of the Rotrex in the URD kit. I keep reading about those Rotrex units locking up and snapping the shaft. They aren't rebuildable, so you're screwed at that point.

    BassAckwards [OP] likes this.
  14. Nov 24, 2019 at 3:09 PM
    #14
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    5,975
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    Anything's possible with enough time and money. The quickest way to start figuring it out would be to look at dimensioned drawings of the Rotrex and Procharger to see if the mounting patterns are even remotely similar and what the difference is for the mounting face to pulley centerline distance. The next obstacle would be to get your hands on of the URD mounting brackets. They don't sell them separately as far as I know, and I've never seen someone parting out an URD SC kit.

    BassAckwards [OP] likes this.
  15. Nov 26, 2019 at 1:58 PM
    #15
    dirtdigginjoe

    dirtdigginjoe Resident meth-head

    Joined:
    Oct 7, 2015
    Member:
    #166036
    Messages:
    674
    Gender:
    Male
    First Name:
    Joe
    Long Island, NY
    Vehicle:
    Paco The Turbo Taco
    GT2871r turbo @6psi...for now.
    @BassAckwards The one step colder plugs are Denso IKH22's for anyone with forced induction.

    Great compilation of info in one place, I like it!

    05Taco4x4 and BassAckwards [OP] like this.
  16. Nov 26, 2019 at 2:02 PM
    #16
    BassAckwards

    BassAckwards [OP] Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    24,976
    Gender:
    Male
    First Name:
    Robert
    Thanks for the info man! So those would be the same plugs that came with the TRD supercharger in the 4.0 i think.. Will add this to the list for everyone. Appreciate you chiming in

    dirtdigginjoe likes this.
  17. Nov 26, 2019 at 6:53 PM
    #17
    Jowett

    Jowett Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    936
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    The 2TR, xGR roller cam, and xUR series V8, all use the same architecture... for once, the penny pinchers did something good. Too bad a Lexus IS-F cylinder head won't bolt on the 2TR.

    BassAckwards [OP] and Torspd like this.
  18. Nov 27, 2019 at 6:56 PM
    #18
    BassAckwards

    BassAckwards [OP] Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    24,976
    Gender:
    Male
    First Name:
    Robert
    Last edited: Nov 27, 2019
  19. Dec 11, 2019 at 5:28 AM
    #19
    Konvict KROG

    Konvict KROG Live Free or Die Trying

    Joined:
    Aug 9, 2013
    Member:
    #110115
    Messages:
    3,479
    Gender:
    Male
    Louisiana
    Vehicle:
    Old Toyota's, Power Wagon, and a Tacoma
    Traded the 2015 TRD Pro 6spd Supercharged on a PowerWagon and could not be happier. My 2011 Tacoma with the TX Baja package (Added by me) is still treating me great. My 1985 Toyota never skips a beat.
    Now that is something I want!

    BassAckwards [OP] likes this.
  20. Dec 26, 2019 at 5:14 PM
    #20
    BassAckwards

    BassAckwards [OP] Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    24,976
    Gender:
    Male
    First Name:
    Robert
    I confirmed this weekend that a 31M northstar battery will not fit with the URD S/C intake charge piping. Had to swap back to a 27F Northstar, and it was still a tight fit, but made it work so i could keep my AGM battery. Had to cut up my auxillary fuse panel to fit the oil cooler in there, but got that wrapped up as well. Currently working on figuring out a mount for the rotrex oil cooler, and need to get some hardware for the intercooler mounts, but cut the core support for the intercooler piping.


    EDIT: had to go back to a 24F, still didn't have enough room to clear the driver side charge piping.

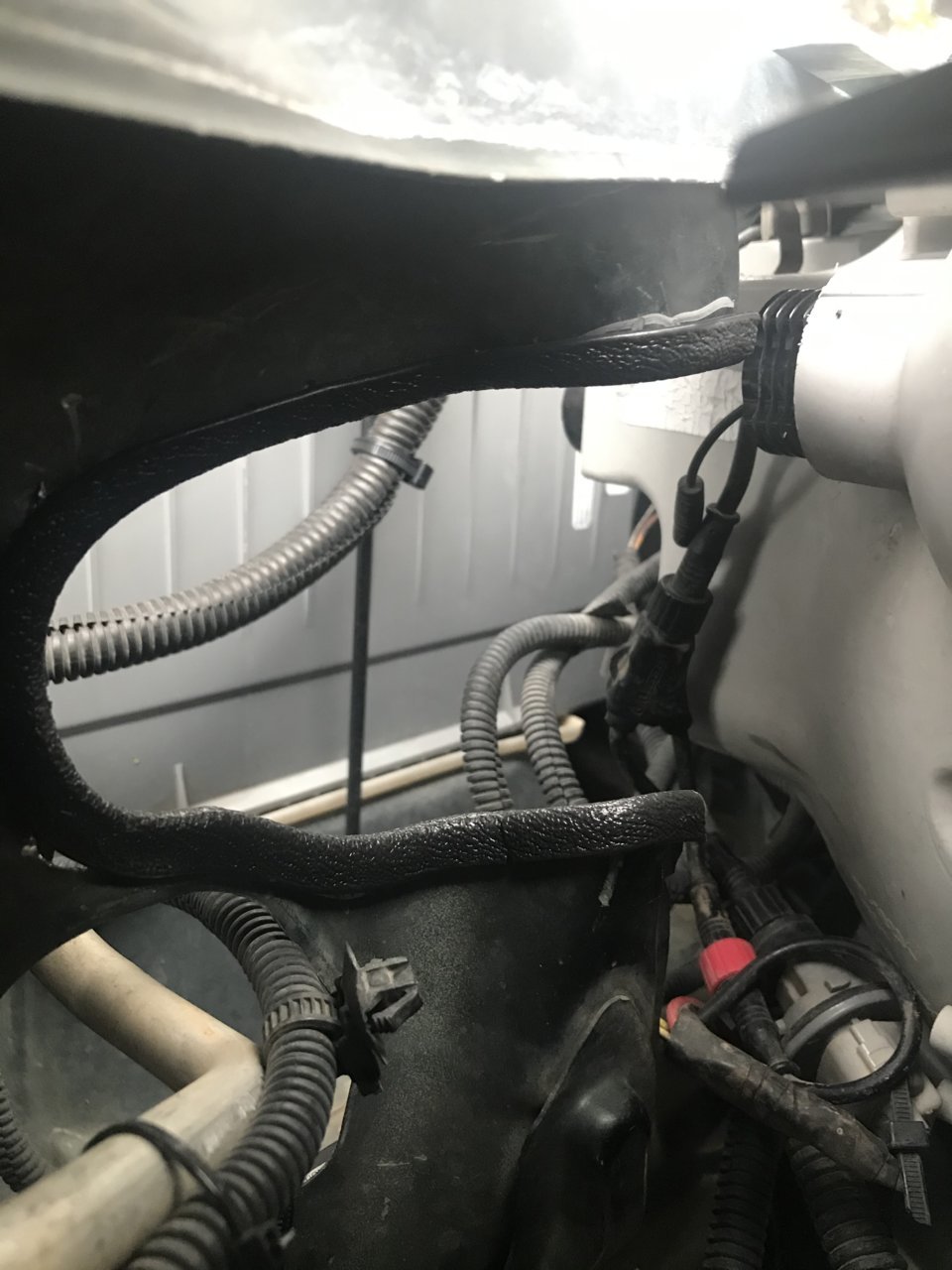

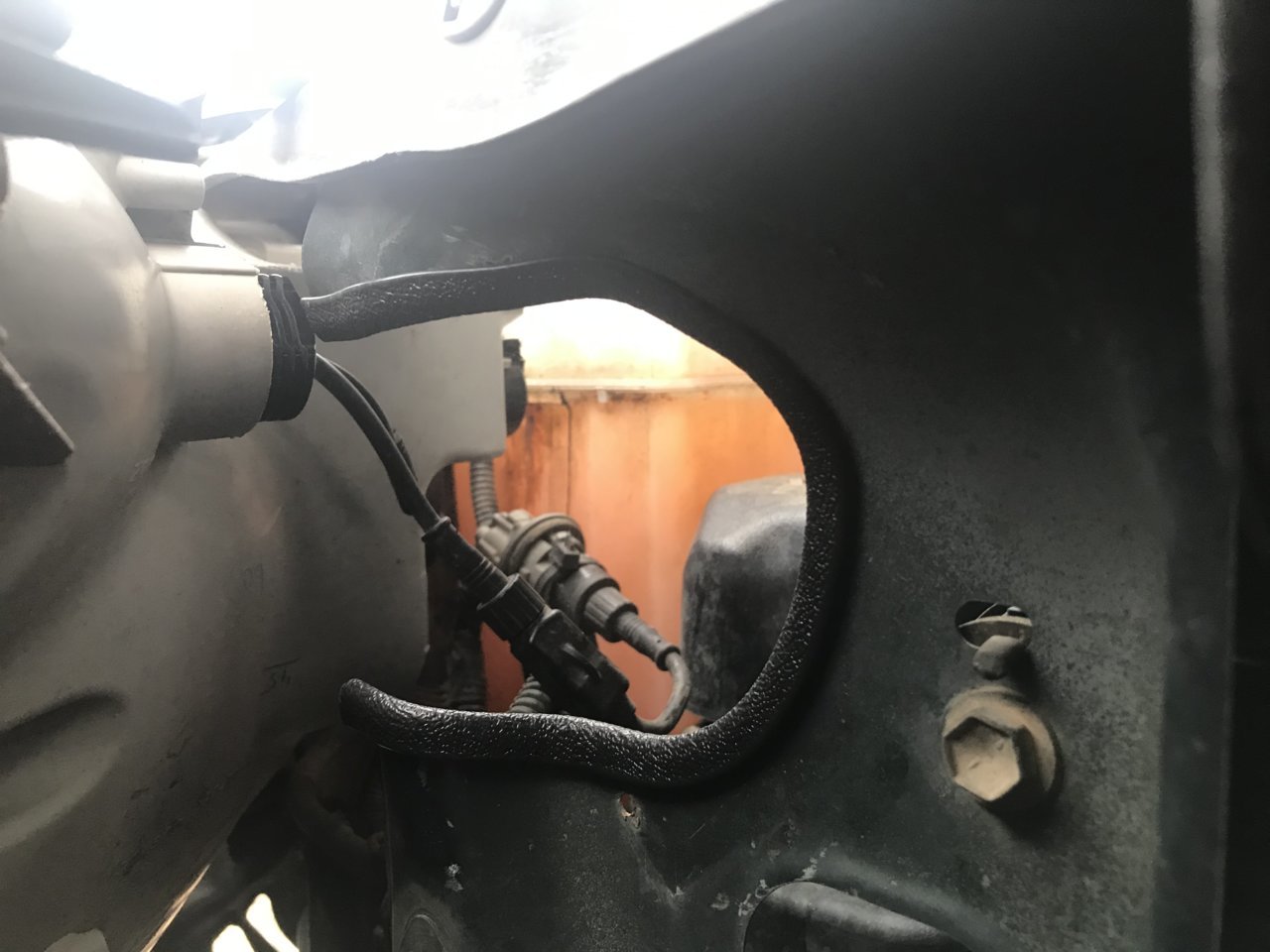

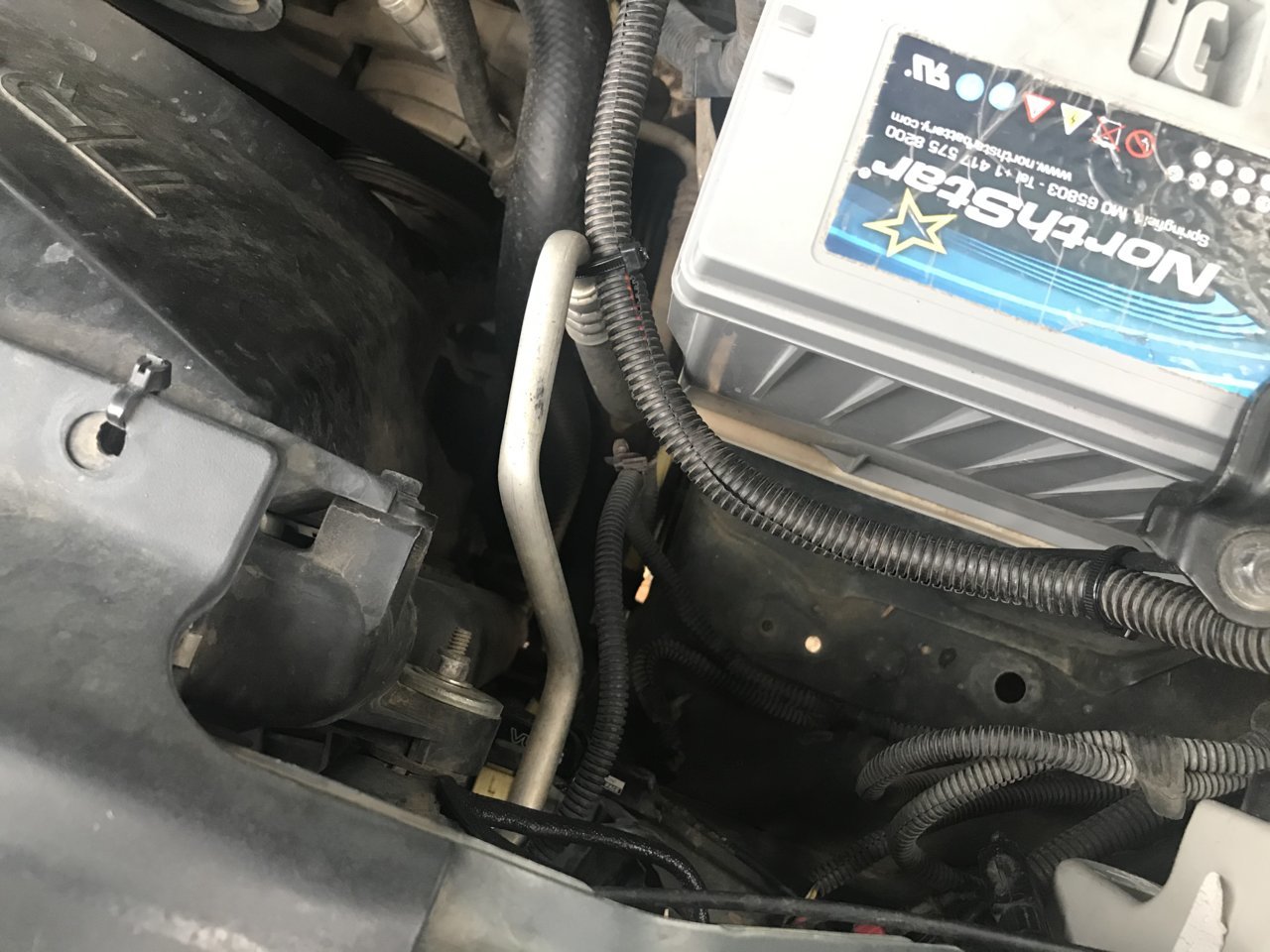

    Heres a pic of clearance after swapping batteries

    In other news, got the SPEC clutch and LCE lightweight flywheel in this weekend. It vibrates like a sob right now, so im hoping that will go away once it's broken in. Considering taking the whole assembly out after it's broken in if the vibes dont go away and having a machine shop balance it for me.

    Also ordered a type F harness from URD for the MAPECU3 so i dont have to hack up my stock harness. AEM 340 fuel pump and MAPECU3 install is on the list for the end of the year.

    170* Motorad thermostat was installed yesterday. I am happy to report that operating temps have gone down about 10 degrees. Normally would be in the 193-199 range, now it's hovering around the low to mid 180s.


    Attached Files:

    Last edited: Jan 17, 2020
    buyobuyo likes this.

Products Discussed in

To Top
